Description
Lumberline Sawmill Headsaw & Edger Laser Kit
 2 Year Warranty
Available in Red and Green
Green Laser Light 520nm 20mw-100mW
The 532nm green line laser module is self-contained and designed for use in industrial alignment situations. Like sawmills, edgers and wood working.
Laser Specifications :
- Â Â Â Â Â Â Â Â Â Â Â Laser Class : Â Â Â Â Â Â Â Â Â Â Â 2, 3R, 3B (II, IIIa, IIIb)
- Â Â Â Â Â Â Â Â Â Â Â Wavelength : Â Â Â Â Â Â Â Â Â Â 520nm
- Â Â Â Â Â Â Â Â Â Â Â Output Power : Â Â Â Â Â Â Â <10mW (30mW available)
- Â Â Â Â Â Â Â Â Â Â Â Output Mode : Â Â Â Â Â Â Â Â Â Continuous
- Â Â Â Â Â Â Â Â Â Â Â Input Voltage : Â Â Â Â Â Â Â Â 3V-9V DC
-            Beam :            up to 16’ (5 m) line
-            Expected Lifetime : > 10,000 hours           (severe vibration reduces expected life)
- Â Â Â Â Â Â Â Â Â Â Â Case Material : Â Â Â Â Â Â Â Metal
- Â Â Â Â Â Â Â Â Â Â Â Length :Â Â Â Â Â Â Â Â Â Â 2.75″ (69.85mm)
- Â Â Â Â Â Â Â Â Â Â Â Diameter :Â Â Â Â Â Â Â Â 1.25″ (31.75mm)
Red Laser Light 635nm 15mw-30mW
The 635nm red line laser module is self-contained and designed for use in industrial alignment situations. Like sawmills, edgers and wood working
Laser Specifications :
- Â Â Â Â Â Â Â Â Â Â Â Laser Class : Â Â Â Â Â Â Â Â Â Â Â 2, 3R, 3B (II, IIIa, IIIb)
- Â Â Â Â Â Â Â Â Â Â Â Wavelength :Â Â Â Â Â Â Â 635nm
- Â Â Â Â Â Â Â Â Â Â Â Output Power : Â Â Â Â Â Â Â <10mW (30mW available)
- Â Â Â Â Â Â Â Â Â Â Â Output Mode : Â Â Â Â Â Â Â Â Â Continuous
- Â Â Â Â Â Â Â Â Â Â Â Input Voltage : Â Â Â Â Â Â Â Â 3V-9V DC
-            Beam :            up to 16’ (5 m) line
-            Expected Lifetime : > 10,000 hours           (severe vibration reduces expected life)
- Â Â Â Â Â Â Â Â Â Â Â Case Material : Â Â Â Â Â Â Â Metal
- Â Â Â Â Â Â Â Â Â Â Â Length :Â Â Â Â Â Â Â Â Â Â 2.75″ (69.85mm)
- Â Â Â Â Â Â Â Â Â Â Â Diameter :Â Â Â Â Â Â Â Â 1.25″ (31.75mm)
They generate a visible homogeneous distribution line with an aperture angle of 90°. Which also means it stays a green consistent line from end to end.

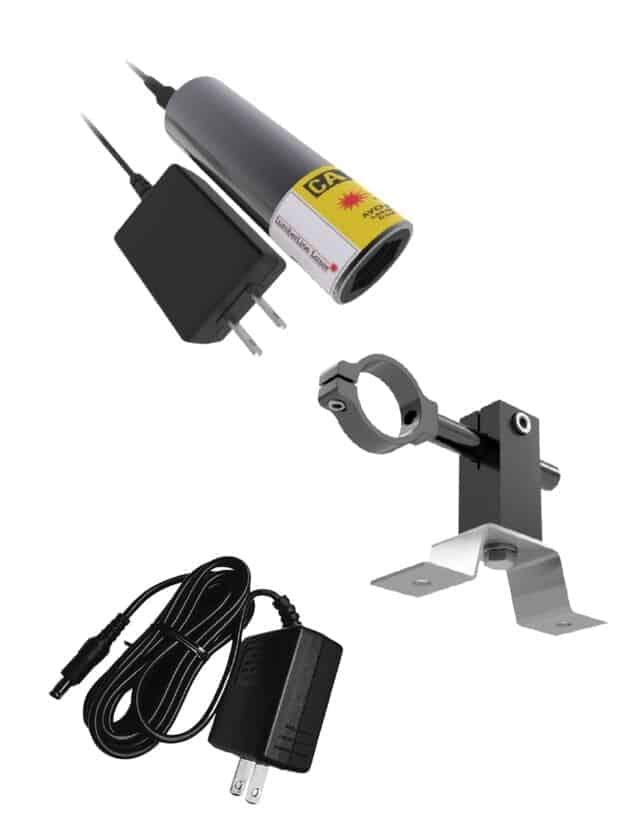

This Kit Contains:

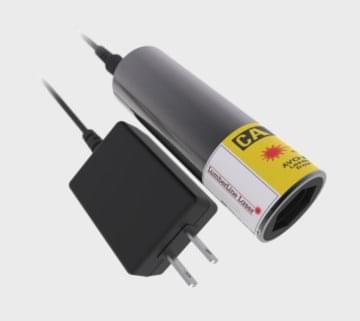

- Lumber Line R series Laser Line (green or red)
- AC Adapter Power Supply
- Multi-position Mount.
- FREE Shipping
Our prices are so low, Lumberline asked us to not publish the price…Ask for a quote…
Warning! These lasers emit radiation that can be harmful to the eye. Do not look directly into the laser aperture. Direct viewing of laser beam at close range may cause severe eye damage!!

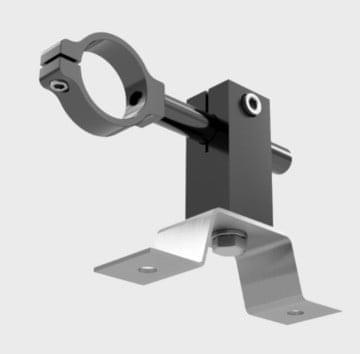

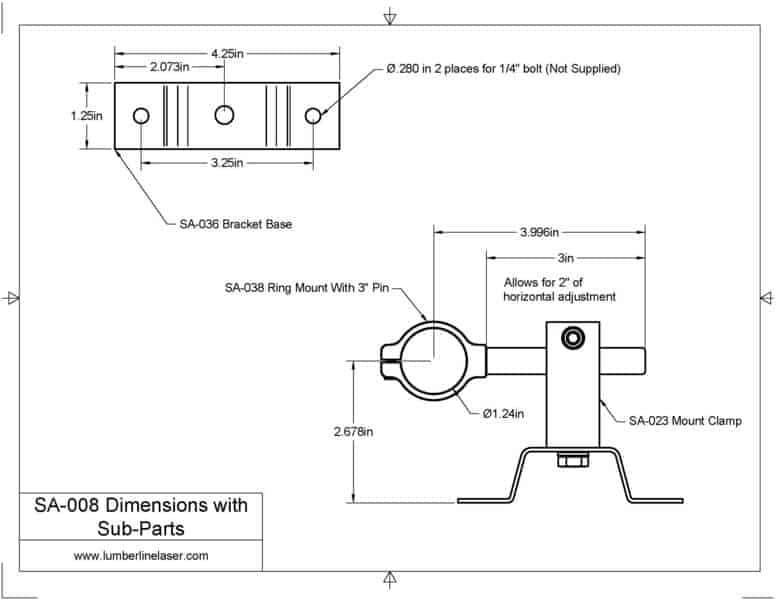

Mounting Bracket
This multidirectional metal mounting bracket facilitates positioning and to provide additional heat sink protection to the laser diode module. Accommodates lasers 1-1/4″ (31.75mm) in diameter.
Laser diode modules are positive to the case for optimal heat sinking. Do not mount metal brackets to the negative supply or negative earth without additional electrical isolation.
Overall Size: 4-7/8Â x 3-1/2 x 1-1/4 (123.825 mm x 88.9 mm x 31.75 mm)

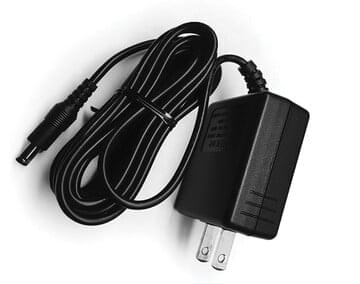

Power Supply
100/240, power supply adapter, 5V DC for laser modules.
Specifications :
- Â Â Â Â Â Â Â Â Â Â Â Input : Â Â Â Â Â Â Â Â Â Â Â 110 -120VAC
- Â Â Â Â Â Â Â Â Â Â Â Output :Â Â Â Â Â 5V DC
START A QUOTE TODAY! By starting a quote, we can send your price with FREE shipping!
 If You are wanting other LumberLIne items, different mounts, laser types…let us know! email us now
Or give us a call: 1-888-806-8805
